SK Series Pneumatic Percussion Hammer

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T, L/C, PAYPAL

Add to Cart

Product Details
Company Profile

SK Series Pneumatic Percussion Hammer

Product Detail

Product Tags

Feature:

The main characteristeristics air:magnetic impact of large powder falling effect;airconsumption,low operating cost,

energy-saving effect is goof; percussion interval adjustable;quality,relrable,low failure rate;structure is simple,easy removal;

innovative designs,chic; piston impate resistance,(can be customized explosion proor), Widely used pesticides,mining,

environmental protection and other industries, is powerful powerful powerful powder processing line auxiliary equipment.

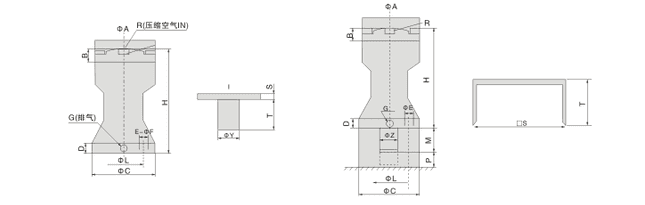

Dimensions:
SK1

Technical praameters:

Type	A	B	C	D	E	G	H	L	S	T	Y	R
SK-30	75	10	82	13	9	G1/8	132	68	6	50	27	G1/4
SK-40	90	12	97	18	11	G1/4	162	78	10	60	34	G1/4
SK-60	121	13	143	19	15	G1/4	215	100	10	60	48	G1/4
SK-80	160	17	170	20	17	G3/8	260	140	14	90	70	G3/8
SK-100	200	18	200	23	17	G3/8	318	160	18	90	70	G3/8

Type

Operating pressure

Air consumption

Wallop

Weighe

(kgf/cm²）

L/pc

kgm/sec

SK-30

3~7

0.028

~0.75

1.1

SK-40

3~7

0.082

~2.2

2.2

SK-60

3~7

0.228

~7.4

5.1

SK-80

4~7

0.455

~16.4

11.1

SK-100

5~7

1.012

~30

37.5
