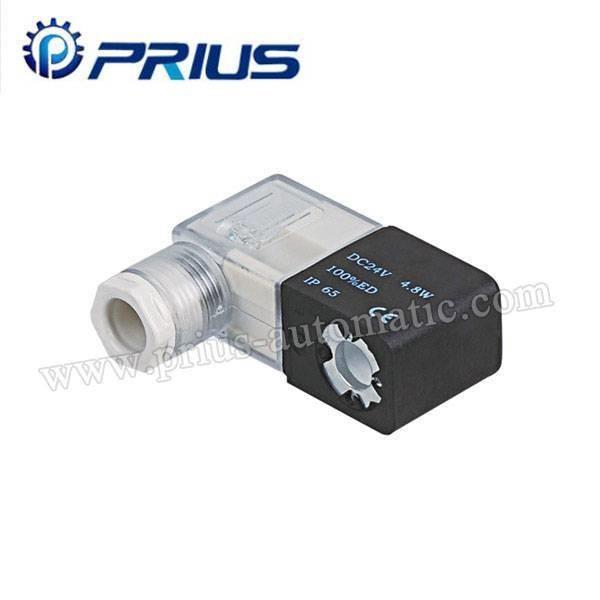

200C 24 Volt Solenoid Coil 200 / 300 / 400 Seri...

Product Detail

Product Tags

Detailed Product Description

Material:	Aluminium Alloy Brass	Working Medium:	Air/oxygen/rare Gases
Max Pressure:	0.4Mpa	Pressure Range:	0~0.35Mpa
Temperature Range:	-5~60℃	Port Size:	G1/4″
Net Weight:	0.4kg/pcs	Voltage:	DC12V,DC24V
Class Of Insulation:	F Class	Cv:	0.89

200C Coils DC / AC power for 200 / 300 / 400 series Solenoid Valve Junction Box wire lead

Quick Detail:

* electromagnetic induction coil for pneumatic solenoid valve application

* working voltage DC12V,DC24V,AC110V,AC220V

* power consumption AC:4VA~30VA,DC:3W~48W

* thermoplastic type,Thermosetting type,Non Encapsulation type

* electricity connecting type wire flying lead type or socket type

* electricity connecting standard DIN43650A DIN43650B

* insulation F class,H class

* various model for different application

* stable and long service cycle

* CE certification approved

Specifiction

Model	100C	200C

Power	DC:2.8W AC:2.8VA	AC: 5.5VA DC: 4.8W
Operation	100% ED
Working Voltage	AC:24V, 110V, 220V, 380V	DC:12V, 24V
Ambient Temperature	-30℃～70℃
Protect Class	IP65
Insulation Class	F Class
Wiring Form	Lead Wire Type, Connector Type
