4V300 Solenoid Valve

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T,L/C,PAYPAL

Add to Cart

Product Details
Company Profile

4V300 Solenoid Valve

Product Detail

Product Tags

Ordering Code

Specification

Model	4V310-08	4V320-08	4V330C-08	4V330E-08	4V330P-08	4V310-10	4V320-10	4V330C-10	4V330E-10	4V330P-10
	4A310-08	4A320-08	4A330C-08	4A330E-08	4A330P-08	4A310-10	4A320-10	4A330C-10	4A330E-10	4A330P-10
Valve Type	5/2 Way		5/3 Way			5/2 Way		5/3 Way
Effective Sectional Area	25m㎡(CV=1.40)		18m㎡(CV=1.00)			30m㎡(CV=1.68)		18m㎡(CV=1.00)
Model	3V310-08	3V320-08		3A310-08	3A320-08	3V310-10	3V320-10		3A310-10	3A320-10
Valve Type	3/2 Way
Effective Sectional Area	25m㎡(CV=1.40)					30m㎡(CV=1.68)
Port Size	Air Inlet=Air Outlet=Exhaust=G1/4″					Air Inlet=Air Outlet=G3/8″ Exhaust=G1/4″
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC:5.5VA DC:4.8W
Insulation & Protection Class	F(class) IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

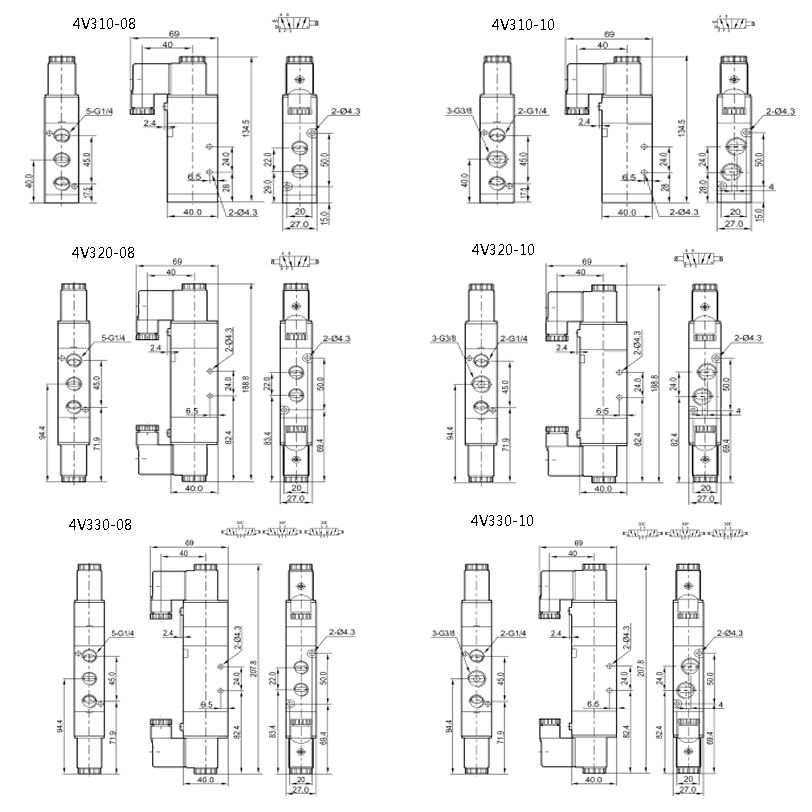

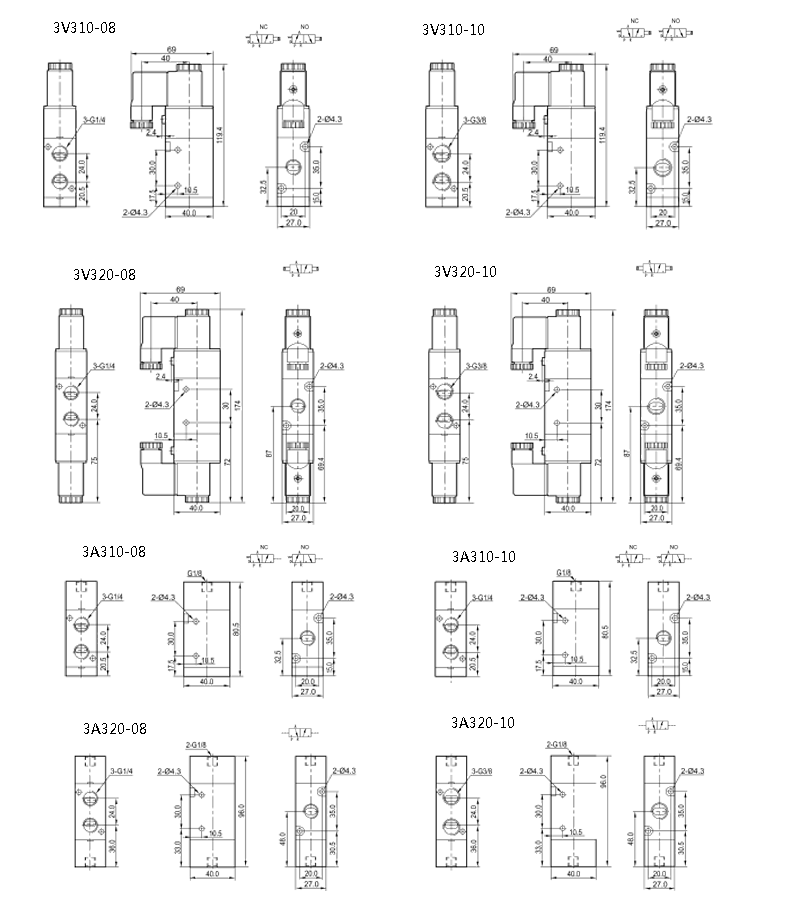

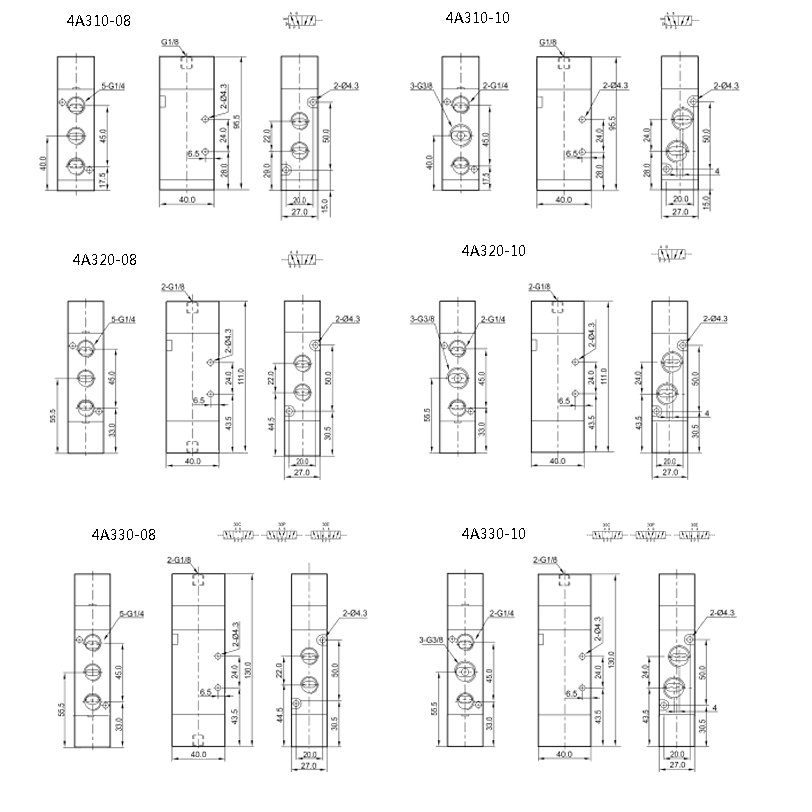

Overall Dimension
