    4V400 Solenoid Valve

    Ask Lasest Price
    Supply Ability : 10000 Piece/Pieces per Month
    Payment Terms : T/T,L/C,PAYPAL
    • Product Details
    • Company Profile

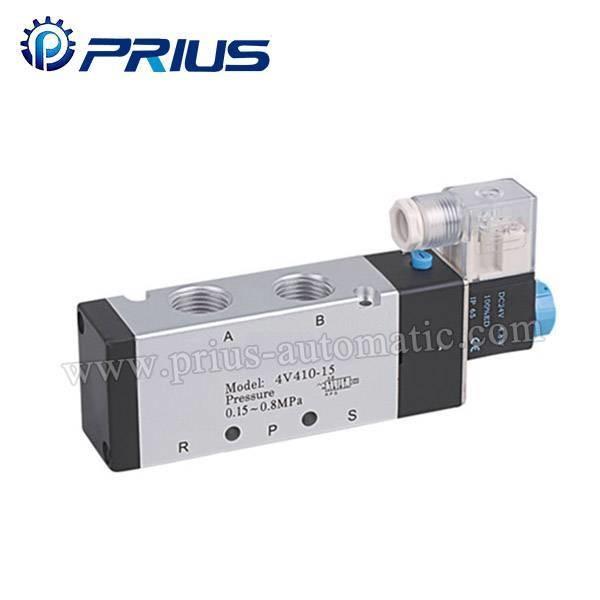

    4V400 Solenoid Valve

    Product Detail

    Product Tags

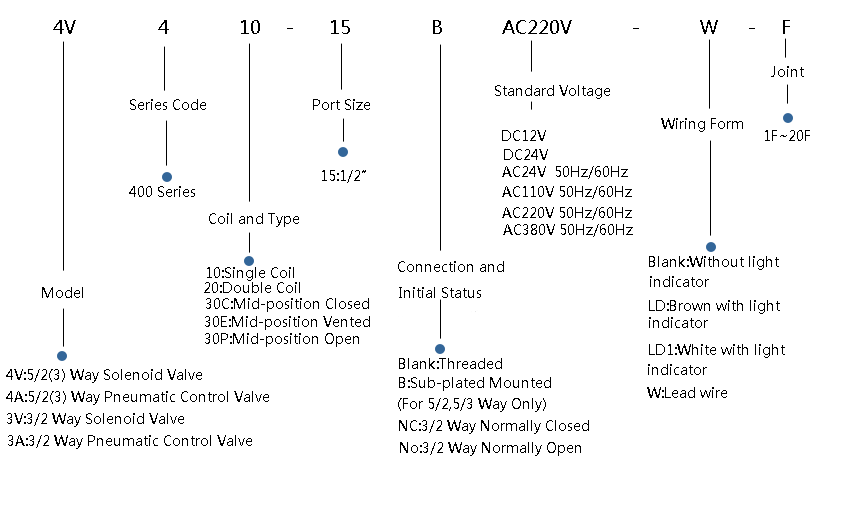

    Ordering Code

    Specification

    Model4V410-154V420-154V430-154V430E-154V430P-15
    4A410-154A420-154A430-154A430E-154A430P-15
    Valve Type5/2 Way5/3 Way
    Effective Sectional Area50m(CV=2.79)30m(CV=1.68)
    Model3V410-153V420-153A410-153A420-15
    Valve Type3/2 Way
    Effective Sectional Area50m(CV=2.79)
    Port SizeAir Inlet=Air Outlet=Exhaust=G1/2″
    Working Medium40 Micron Filtered Air
    Motion PatternInner Guide Type
    Working-pressure0.15~0.8MPa
    Max. Pressure Resistance1.2MPa
    Operating Temperature5~50℃
    Voltage Range±10%
    Power ConsumptionAC:5.5VA DC:4.8W
    Insulation & Protection ClassF(class) IP65
    Wiring FormLead Wire or Connector type
    Highest Action Frequency5 Cycle / Sec
    Shortest Excitation Time0.05 Second

    Overall Dimension
