HV/K/4HV Hand Switch Valve

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T, L/C, PAYPAL

Add to Cart

Product Details
Company Profile

HV/K/4HV Hand Switch Valve

Product Detail

Product Tags

Ordering Code

Specification

Model

HV400-02

HV400-03

HV400-04

K34R8-L6

K34R8-L8

Working Medium

40 Micron Filtered Air

Effective Sectional Area

30mm2(CV=1.68)

18mm2(CV=1.00)

Port Size

G1/4″

G3/8″

G1/2″

G1/8″

G1/4″

Working-pressure Range

0~0.8MPa

Operating Temperature

0~60℃

*Company can offer Hand-switching Valve with soft rubber seals and hard pottery seals as the seal structure form.

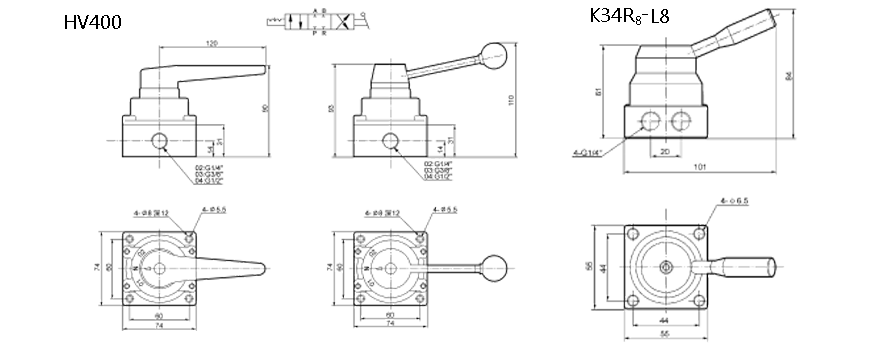

Overall Dimension

4HV
Ordering Code

Specification

Model	4HV-200		4HV-300			4HV-400
Port Size Code	6A	8A	8A	10A	15A	8A	10A	15A	20A
Operating Fluid	Air
Working-pressure Range	0~10Kgf/cm
Environment Temperature	5~60℃
Way NO.	4
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT1/4	PT3/8	PT1/2	PT3/4

Overall Dimension
