HV/K/4HVseries HAND SWITCH VALVE

Ask Lasest Price
MOQ :	10pcs
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T, L/C, PAYPAL

Add to Cart

Product Details
Company Profile

HV/K/4HVseries HAND SWITCH VALVE

Product Detail

Product Tags

Detailed Product Description

Name:	Manual Directional Control Valve	Working Medium:	Air
Pressure Range:	0~0.8Mpa	Temperature Range:	0~60℃
Colour:	White	MOQ:	10pcs

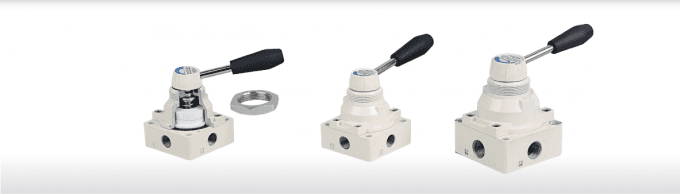

4HV Series Hand Switching Valve White Body NBR seal or TC seal with Nut

4HV Series Three position four way hand switching valve port size G1/4,G3/8,G1/2 e.g 4HV400-15 with 90º switching angle

Quick Detail:

* 4HV Series hand switching valve

* Three position Four Way

* Port Size G1/4,G3/8,G1/2

* Main body mounting and Panel Mounting for option

* Switching angle 90º,sensitive repond acting

* Smooth switching,Long Service Life

Applications:

4HV series hand switching valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

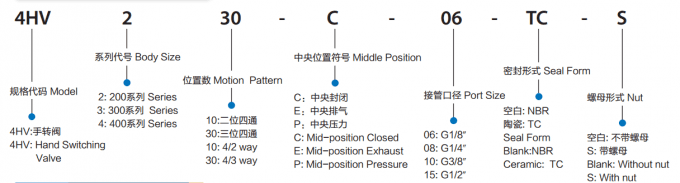

Specifiction

Model	4HV-200		4HV-300			4HV-400
Port Size Code	6A	8A	8A	10A	15A	8A	10A	15A	20A
Operating Fluid	Air
Working-pressure Range	0~10Kgf/cm
Environment Temperature	5~60℃
Way NO.	4
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT1/4	PT3/8	PT1/2	PT3/4

20170420194749_96098 20170420194807_35904 20170420194758_24041

20170420194824_13565 20170420194833_29879 20170420194815_10080
