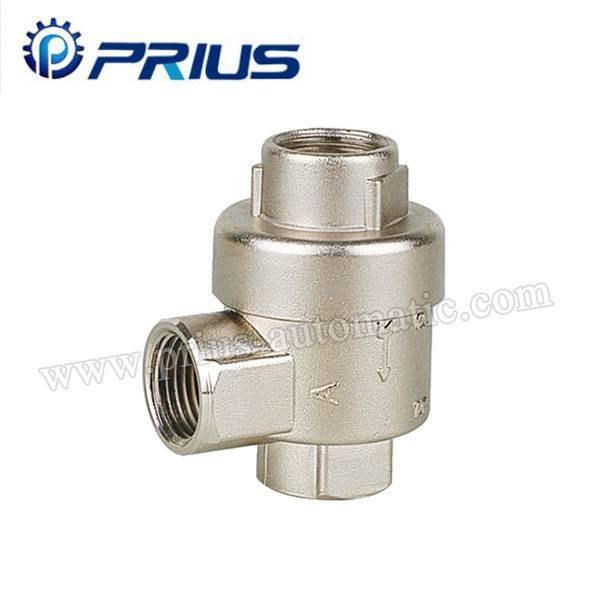

Big Size Air Flow Control Valve XQ Series Quick Exhaust Valve Brass / Zinc Alloy Body

XQ Series Quick Exhausting valve is generally installed in the pipeline between the cylinderand change valve and lose to the cylinder to enable the cylinder to directly discharge the air without the necessity to go through the change valve and so as effect on raising the movement speed of the cylinder​,port size G1/8~G1/2 brass / Zinc Alloy material valve body

Quick Detail:

* XQ Series Quick exhausting valve

* Body Material Brass

*Three Ports connections

* Port Size G1/8”,G1/4”,G3/8,G1/2”

* Compact design,small volume

* Easy operation,sensitive of Respond

* Fast exhausting,safety operation

* Directly pipe joint mounting,easy and convenient

* Stable design,long serive life

Applications:

XQ Series Quick Exhausting valve widely use in the pneumatic system highest place ,Turning place or anywhere that air shut-in,It can Quickly exhausting shut-in air keep the system pipe through and keep the components motion smoothly,and safely.

For example,XQ installed between the cylinder and direction control valve near the cylinder,air cylinder exhuasting can directly by exhausting valve not through the direction control valve,can improve the cylinder working speed effectively

Specifiction

P. Contect the exchange valve for output

A. Connect the cylinder

R. Connect the muffler
