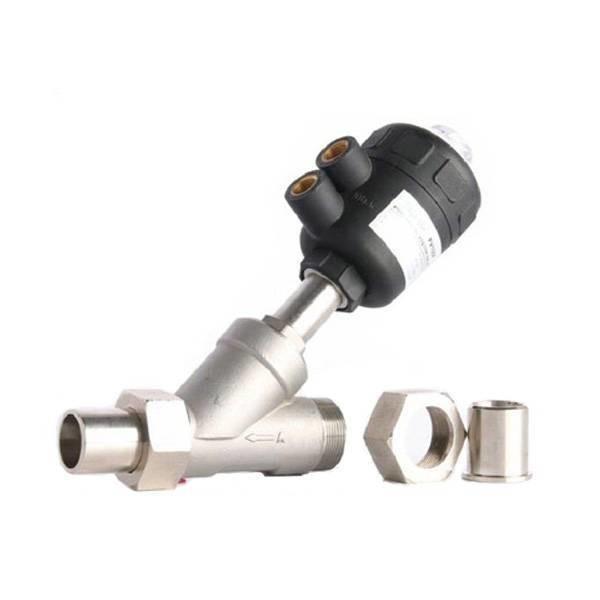

SeriesPV200 (Male Threaded Port)

Product Detail

Product Tags

2/2-way Angle-Seat Valve for medium up to +180°C, male threaded port connection, DN 15-65
? High flow rate
? Long life cycle
? NC and NO universal actuators with modular
universal accessory program up to control heads
? Deliverable with flow direction below or above seat
? Simple conversion of the control function

Actuator Size

Port Size	Standard Actuator Size mm			PV200 Series Plunger Pilot angle seat valve is propelled by piston actuator, either single acting or double acting. Actuators are made of three different materials, applicable to different working temperature: 2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective sealing Maintenence free, compatible with various accessories, direction indicating, stroke limiting or manual switching can be achieved conveniently.
Port Size	PA	S.S.	AL
DN15	40,50	40,50	40,50
DN20	50,63,80	50,63,90	50,63,80
DN25	50,63,80	50,63,90	50,63,80
DN32	63,80	63,90	63,80
DN40	63,80	63,90	63,80
DN50	63,80	63,90	63,80
DN65	80,100	90,125	80,100

Specifications

Model Specification	Nomal Closed	P015NC	P020NC	P025NC	P032NC	P040NC	P050NC	P065NC
	Nomal Open	P015NO	P020NO	P025NO	P032NO	P040NO	P050NO	P065NO
Material of boday/Actuator		S.S304 316/PA
Operating Method		Plunger Pilot
Ambient and fluid		Air,Water,Oil.Steam(50CTS Bellow)
Port size		G1/2	G3/4	G1	G1 G1/4	G1 G1/2	G2	G2 1/2
Nominal Diameter mm		13	18	24	31	35	45	61
Kv(m3/h)		4.2	9	19	33	42	59	90
Model Specification	Nomal Closed	S015NC	S020NC	S025NC	S032NC	S040NC	S050NC	S065NC
	Nomal Open	S015NO	S020NO	S025NO	S032NO	S040NO	S050NO	S065NO
Material of boday/Actuator		S.S304 316/PA
Seat seal		PTFE/FPM
Stem seal		PTFE/FPM
Piston seal		PTFE/FPM/NBR
Tempreture of Medium	PTFE	-10~200℃
	FPM	-10~150℃
Installing		Downsteam/Upsteam
