    3V1 Solenoid Valve

    Ask Lasest Price
    Supply Ability : 10000 Piece/Pieces per Month
    Payment Terms : T/T, L/C, PAYPAL
    • Product Details
    • Company Profile

    3V1 Solenoid Valve

    Product Detail

    Product Tags

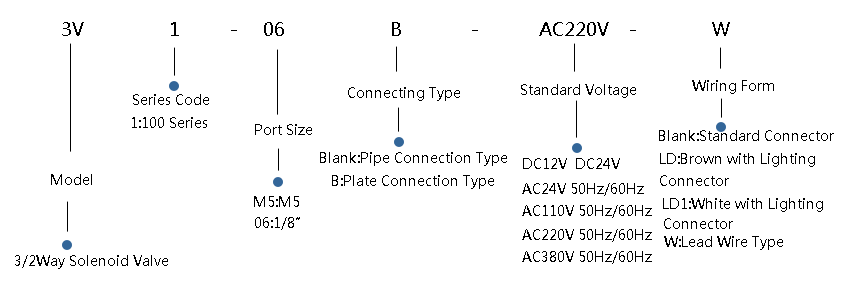

    Ordering Code1.png

    Specification

     2.png                Model3V1-M53V1-06
           Working Medium40 Micron Filtered Air
              Motion Pattern Direct Drive Type
                    Port Size M51/8″
       Ambient Temperature -10~+60℃
            Gas Temperature 5~60℃
          Air Outlet Diameter 1.0mm
                 Lubrication Not Necessary
           Working-pressure 0~0.8MPa
    Max. Pressure Resistance 1.2MPa
         Power Consumption AC: 5.5VA   DC: 4.8W
                Protect Class IP65
    Power Connection FormLead Wire or Connector Type
             Material of Body Aluminum Alloy
    Highest Action Frequency 10 Cycle/Sec
                   InsulationF Class
               Voltage Range±10%
     Shortest Excitation Time 0.05  Second
