    Round Stainless Steel Mini Air Cylinder CRDSW T...

    Ask Lasest Price
    Supply Ability : 10000 Piece/Pieces per Month
    Payment Terms : T/T,L/C,PAYPAL
    • Product Details
    • Company Profile

    Round Stainless Steel Mini Air Cylinder CRDSW T...

    Product Detail

    Product Tags

    Name:Stainless Steel Air CylinderWorking Medium:Air
    Working Pressure:1-9.0Kgf/cm²Pressure:13.50Kgf/cm²
    Temperature Range:0-70℃Speed Range:50~800mm/s
    Buffer Type:Gasket Buffer/Adjustable BufferPort Size:G1/8″ ~ G3/8″
    Fix Type:Normal/LB/FA/FB/SDBMotion Pattern:Single/Double Acting

    Quick Detail:

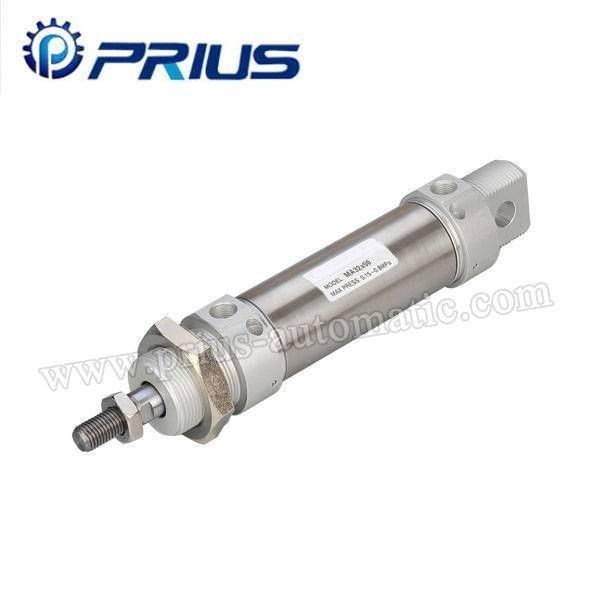

    * CRDSW type Round Stainless Steel Pneumatic Mini Cylinder

    * With magnet,air buffer adjustable or rubber cushion for choice

    * Stainless steel barrel,Aluminum tube can be optional

    * Piston rod #45(ASTM-1045) steel chrome-plated

    * Stainless steel piston rod is available

    * With guide plate type available

    * With self-lubricating bearing,lubrication free

    * Bore size 32mm,40mm,50mm,63mm

    * Cylinder kits and accessories available

    Specifiction

    Bore (mm)32405063
    Motion PatternDouble Acting or Single Acting
    Working MediumAir
    Fixed TypeNormal Type/ LB Type/ FA Type/ SDB Type
    Working Pressure Range1~9.0MPa
    Ensured Pressure Resistance13.5MPa
    Operating Temperature Range0~70℃
    Operating Speed Range50~800mm/s
    Buffer TypeGasket Buffer / Adjustable Buffer
    Port SizeG1/8″G1/4″G3/8″

    Stroke

    Bore(mm)StrokeMax.StrokePermissible Stroke
    321…500500800
    401000
    501200
    601500

    20170316173652_32423 20170316173928_10422 20170316173940_99909 20170316173950_15593 20170316174000_92413
