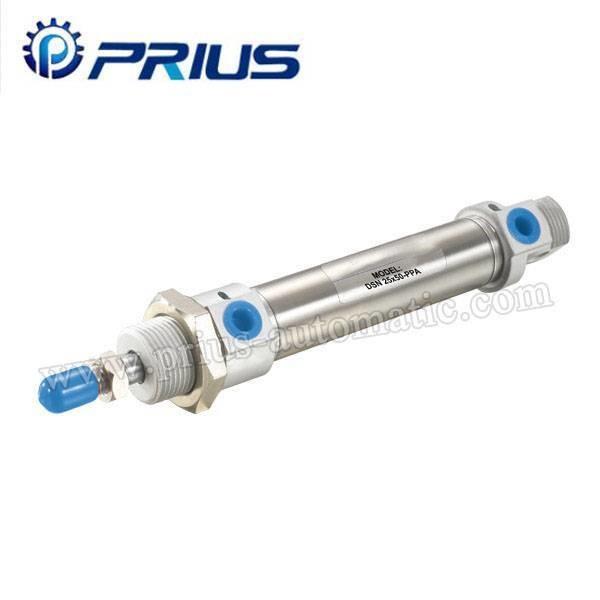

DSN stainless steel mini cylinder

Ask Lasest Price

Add to Cart

Product Details
Company Profile

DSN stainless steel mini cylinder

Product Detail

Product Tags

Ordering Code

Specification

Bore (mm)	12	16	20	25	32	40
Motion Pattern	Double Acting or Single Acting
Working Medium	Air
Fixed Type	Normal type LBType FAType FBType SDBType
Working Pressure Range	1～9.0 Kgf/cm2
Ensured Pressure Resistance	13.5 Kgf/cm2
Operating Temperature Range	0～70℃
Operating Speed Range	50～800mm/s
Buffer Type	Gasket Buffer		Adjustable Buffer
Port Size	M5x0.8		G1/8″

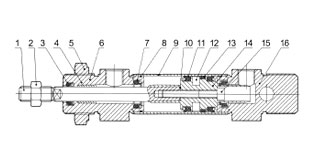

Internal Structure

NO.	Designation	NO.	Designation
1	Piston Rod	9	Stainless Steel Tube
2	Piston Rod Nut	10	Piston Rod O-ring
3	Front Cover Seal Ring	11	Pistion O-ring
4	Bearing	12	Magnet (Optional)
5	Hex Socket Screw	13	Wear Ring
6	Front Cover	14	Piston
7	Buffer Ring	15	Hex Socket Screw
8	Pipe Wall O-ring	16	Back Over

Stroke

Bore(mm)	Standard Stroke																Max.Stroke	Permissible Stroke
12	25	50	75	80	100	125	150	160	175	200							300	500
16	25	50	75	80	100	125	150	160	175	200							300	500
20	25	50	75	80	100	125	150	160	175	200	250	300					500	650
25	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650
32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650
40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650

Overall Dimension

Bore	A	A1	A2	AM	BE	BF	CD	D	EE	EX	EW	G	KK
12	103	103	87	16	M16 x1.5	16	6	21	M5	19	12	10	M6 x1.0
16	112	112	96	16	M16 x1.5	16	6	21	M5	19	12	10	M6 x1.0
20	125	121	105	20	M22 x1.5	18	8	30	G1/8	27	16	15	M8 x1.25
25	136	134	116	22	M22 x1.5	20	8	30	G1/8	27	16	16	M10 x1.25
32	150	143	125	23	M27 x2.0	20	10	38	G1/8	35	20	16	M10 x1.25
40	150	143	125	23	M33 x2.0	20	10	45	G1/8	42	20	16	M14 x1.5

Bore	KU	V	L	L1	MM	NI	NJ	WF	Z1	X	J	AR	I	AX	AY
12	5	-	4	16	6	-	-	22	49	-	5	6	10	24	27.5
16	5	-	9	16	6	-	-	22	58	-	5	6	10	24	27.5
20	7	22	12	22	8	15	28.5	24	59	2	6	7	12	33	29
25	9	22	12	22	10	15	28.5	28	64	2	6	7	17	33	29
32	10	27	15	27	12	19	36.5	28	72	2	6	12	17	41	36
40	14	33	15	27	16	22.5	43.5	28	72	2	8	11.5	22	51	45
