CJ2 stainless steel mini cylinder

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T,L/C,PAYPAL

Add to Cart

Product Details
Company Profile

CJ2 stainless steel mini cylinder

Product Detail

Product Tags

Specification

Bore (mm)	6	10	16
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Working Medium	Air
Ensured Pressure Resistance	1.05MPa (10.5kgf/cm2)
Max. Working Pressure	0.7MPa (7.1kgf/cm2)
Min. Working Pressure	0.25MPa (2.5kgf/cm2)	0.15MPa (1.5kgf/cm2)
Operating Temperature Range	-10~70℃
Operating Speed Range	50~750mm/s
Buffer	Both side rubber buffer (Standard)
Margin of Stroke Error	+1.0 0 mm
Port Size	M5×0.8

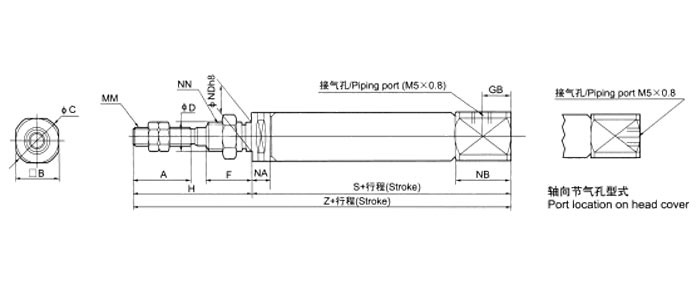

Overall Dimension


Dimension Sheet

Bore	A	B	C	D	F	GA	GB	H	MM	NA	NB	NDh8	NN	S	T	Z
6	15	12	14	3	8	14.5	-	28	M3×0.5	16	7	6	M6×1.0	49	3	77
10	15	12	14	4	8	8	5	28	M4×0.7	12.5	9.5	8	M8×1.0	46	-	74
16	15	18	20	5	8	8	5	28	M5×0.8	12.5	9.5	10	M10×1.0	47	-	75

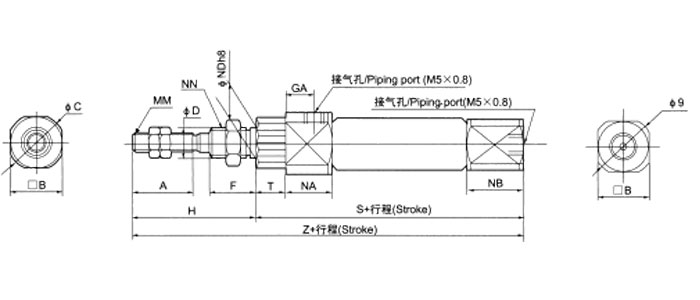

Overall Dimension

Bore	A	B	C	D	F	GB	H	MM	NA	NB	NDh8	*S								*Z
Bore	A	B	C	D	F	GB	H	MM	NA	NB	NDh8	5~15	16~30	31~45	46~60	61~75	76~100	101~125	126~150	5~15	16~30	31~45	46~60	61~75	76~100	101~125	126~150
6	15	8	19	3	8	-	28	M3×0.5	3	7	6 -0 0.018	34.5	43.5	47.5	61.5	-	-	-	-	62.5 (67.5)	71.5 (76.5)	75.5 (80.5)	89.5 (94.5)	-	-	-	-
6	15	8	19	3	8	-	28	M3×0.5	3	7	6 -0 0.018	(39.5)	(48.5)	(52.5)	(66.5)					62.5 (67.5)	71.5 (76.5)	75.5 (80.5)	89.5 (94.5)
10	15	12	14	4	8	5	28	M4×0.7	5.5	9.5	8 -0 0.022	45.5	53	65	77	-	-	-	-	73.5	81	93	105	-	-	-	-
16	15	18	20	5	8	5	28	M5×0.8	5.5	9.5	10 -0 0.022	45.5	54	66	78	84	108	126	138	73.5	82	94	106	112	136	154	166

Overall Dimension


Bore	A	B	C	D	F	GA	H	MM	NN	NA	NB	NDh8	*S								*Z
Bore	A	B	C	D	F	GA	H	MM	NN	NA	NB	NDh8	5~15	16~30	31~45	46~60	61~75	76~100	101~125	126~150	5~15	16~30	31~45	46~60	61~75	76~100	101~125	126~150
6	15	8	14	3	8	14.5	28	M3×0.5	M6×1	16	3	6 0 -0.018	46.5 (51.5)	55.5 (60.5)	59.5 (60.5)	73.5 (78.5)	-	-	-	-	74.5 (79.5)	83.5 (88.5)	87.5 (92.5)	101.5 (106.5)	-	-	-	-
6	15	8	14	3	8	14.5	28	M3×0.5	M6×1	16	3	6 0 -0.018	46.5 (51.5)	55.5 (60.5)	59.5 (60.5)	73.5 (78.5)					74.5 (79.5)	83.5 (88.5)	87.5 (92.5)	101.5 (106.5)
10	15	12	14	4	8	8	28	M4×0.7	M8×1	12.5	5.5	8 0 -0.022	48.5	56	68	80	-	-	-	-	76.5	83	96	108	-	-	-	-
16	15	18	20	5	8	8	28	M5×0.8	M10×1	12.5	5.5	10 0 -0.022	48.5	57	69	81	87	111	129	141	76.5	84	97	109	115	139	157	169
