DNC Standard Cylinder

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T,L/C,PAYPAL

Add to Cart

Product Details
Company Profile

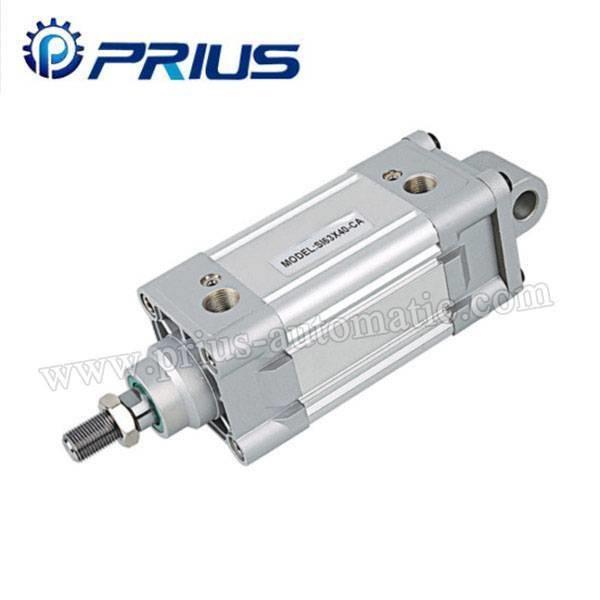

DNC Standard Cylinder

Product Detail

Product Tags

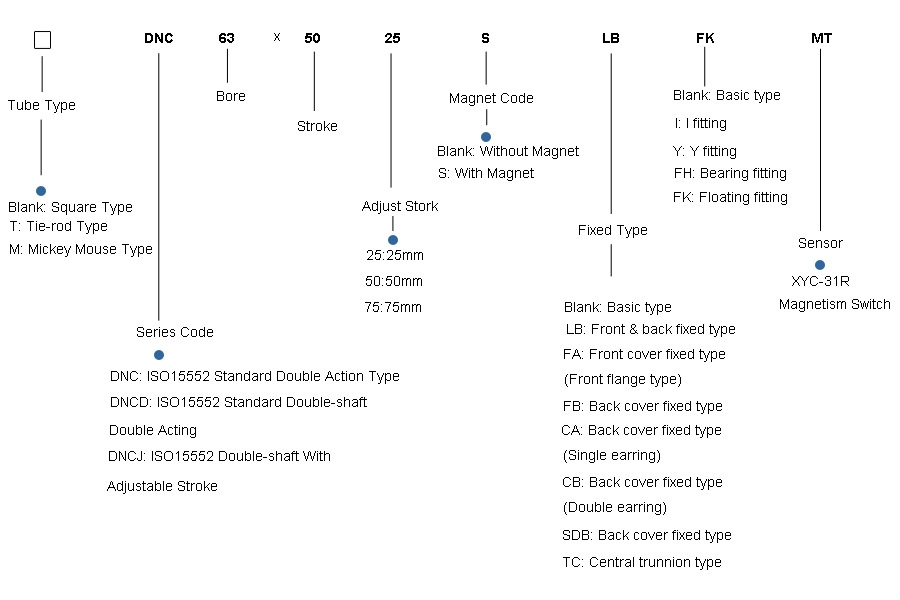

DNC Series ISO15552 Standard Cylinder


Specification

Stroke

Bore (mm)

100

125

Bore

Standard Stroke

Buffer Stroke

Stroke Range

Motion Pattern

Double Action

25 50 80 100 125 160 200 250 320 400 500

10~2000

Working Medium

Fitered Air

Compression Pressure

1.5MPa

Max. Operating Pressure

1.0MPa

Min. Operating Pressure

0.1MPa

Buffer

Air Buffer(Standard)

100

Condition Temperature

-5~70℃

125

Operating Speed

50~800mm/s

Port Size

G1/8″

G1/4″

G3/8″

G1/2″

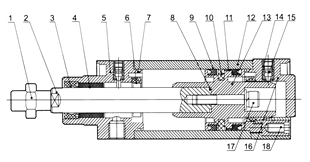

Internal Structure Parts

NO.	Designation	NO.	Designation
1	Piston Rod Nut	10	Magnet (Optional)
2	Piston Rod	11	Wear Ring
3	Front Cover Seal Ring	12	Barrel
4	Bearing	13	Piston
5	Front Cover	14	Buffer Seal
6	Buffering O-ring	15	Buffer Needle
7	O-ring	16	Back Over
8	Pistion rod O-ring	17	Hex Socket Screw
9	Piston O-ring	18


Bore / Symbol	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	142	190	185	16	94	30	33	10	25	22	17	6	M10x1.25	M6
40	159	213	207	20	105	35	34	10	29.5	24	17	7	M12x1.25	M6
50	175	244	233	27	106	40	42.5	10	32	32	23	8	M16x1.5	M8
63	190	258	247	26	122	45	42	10	36	32	23	8	M16x1.5	M8
80	214	301	288	35	127	45	53	10	37	40	26	10	M20x1.5	M10
100	229	321	308	40	137	55	52	10	39	40	26	10	M20x1.5	M10
125	277	394	378	46	160	60	71	10	43.5	54	40	10	M27x2	M12

Bore/Symbol	M	N	O	P	Q	R	S	T	U	V	W	X	Y	Z	Z1
32	12	15	G1/8	5	3	6.5	45	32.5	12	10	28	4	46	58.7	21
40	12	17.5	G1/4	7	3	7	52	38	16	13	33	4	53.7	68	21
50	12	20	G1/4	7	3	9	65	46.5	20	17	38	4	65.8	84.5	23
63	12	22	G3/8	8	5	9	76	56.5	20	17	38	4	79.9	99.6	23
80	15	23	G3/8	10	5	12	94	72	25	22	43.5	5	101.8	123.8	29
100	15	26	G1/2	10	5	14	112	89	25	22	47	6	125.9	148.9	29
125	20	29	G1/2	10	5	14	134	110	32	27	53	7	156.9	179.6	40.5
