MHL2 SERIES pneumatic gripper

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T,L/C,PAYPAL

Add to Cart

Product Details
Company Profile

MHL2 SERIES pneumatic gripper

Product Detail

Product Tags

MHL2
Ordering Code

Magnet Optional

Bore (mm)	坑道安装型
10	Y59A
16	Y59B
20	Y69A
25	Y69B
32	Y7NW
40	Y7BW

Specification

Bore (mm)	10	16	20	25	32	40
Working Medium	Air
Motion Pattern	Double Action
Max.Operating Pressure	0.1Mpa (1.0kgf/c㎡)
Min.Operating Pressure	0.1MPa(1.5kgf/c㎡)		0.1MPa(1.0kgf/c㎡)
Ambient & Medium Temp.	-10~+60℃
Precision	±0.01mm
Retentivity N.m (kgf/c㎡)	14(1.4)	45(4.6)	74(7.5)	131(13.4)	228(23.4)	396(40.4)
Port Size	M5×0.8				Rc(PT)1/8

Stroke & Weight Sheet

Model	Bore mm	Highest Frequency c.p.m	开闭行程 mm(L2-L1)	闭时宽度 mm(L1)	开时宽度 mm(L2)
MHL2-10D	10	60	20	56	76
MHL2-10D1		40	40	78	118
MHL2-10D2		40	60	96	156
MHL2-16D	16	60	30	68	98
MHL2-16D1		40	60	110	170
MHL2-16D2		40	80	130	210
MHL2-20D	20	60	40	82	122
MHL2-20D1		40	80	142	222
MHL2-20D2		40	100	162	262
MHL2-25D	25	60	50	100	150
MHL2-25D1		40	100	182	282
MHL2-25D2		40	120	200	320
MHL2-32D	32	30	70	150	220
MHL2-32D1		20	120	198	318
MHL2-32D2		20	160	242	402
MHL2-40D	40	30	100	188	288
MHL2-40D1		20	160	246	406
MHL2-40D2		20	200	286	486

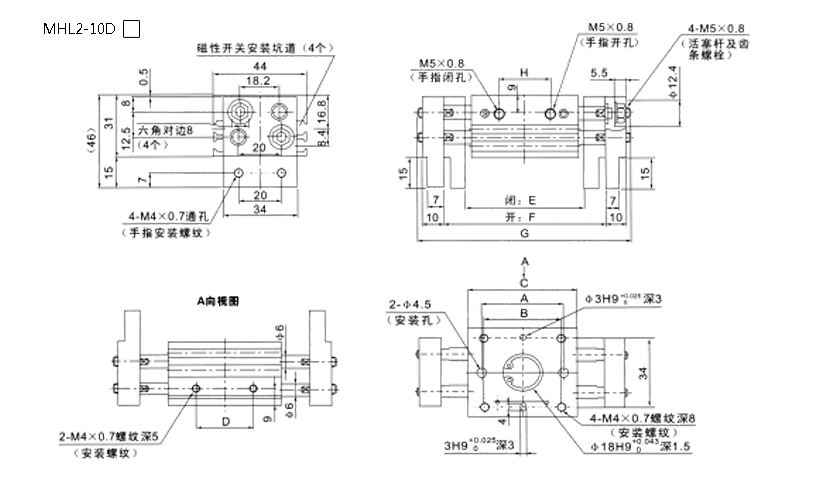

Overall Dimension

Model	A	B	C	D	E	F	G	H
MHL2-10D	38	36	51	26	56	76	100	24
MHL2-10D1	54	52	67	42	78	118	142	29
MHL2-10D2	72	70	85	60	96	156	180	57

Model	A	B	C	D	E	F	G	H
MHL2-16D	40	45	60	28	68	98	128	26
MHL2-16D1	70	75	90	58	110	170	200	50
MHL2-16D2	90	95	110	78	130	210	240	70

Model	A	B	C	D	E	F	G	H
MHL2-20D	54	58	71	38	82	122	160	32
MHL2-20D1	96	100	113	80	142	222	260	68
MHL2-20D2	116	120	133	100	162	262	300	88

Model	A	B	C	D	E	F	G	H
MHL2-25D	66	70	88	48	100	150	196	38
MHL2-25D1	120	124	142	102	182	282	3280	86
MHL2-25D2	138	142	160	120	200	320	366	104

Model	B	C	D	E	F	G	H
MHL2-32D	86	110	60	150	220	272	56
MHL2-32D1	134	158	108	198	318	370	104
MHL2-32D2	178	202	152	242	402	454	148

Model	B	C	D	E	F	G	H
MHL2-40D	116	148	80	188	288	348	72
MHL2-40D1	174	206	138	246	406	466	130
MHL2-40D2	214	246	178	286	486	546	170
