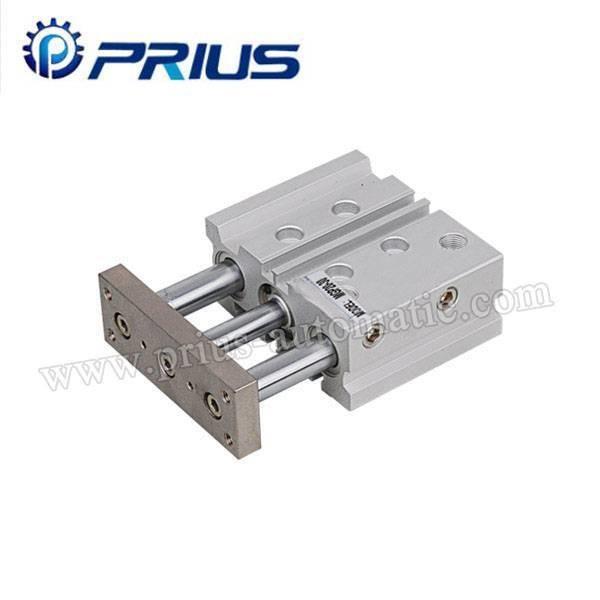

MGP three shaft cylinder

Ask Lasest Price
Supply Ability :	10000 Piece/Pieces per Month
Payment Terms :	T/T,L/C,PAYPAL

Add to Cart

Product Details
Company Profile

MGP three shaft cylinder

Product Detail

Product Tags

Ordering Code


Specification

Bore		12	16	20	25	32	40	50	63	80	100
Working Medium		Air
Motion Pattern		Double Action
Ensured Pressure Resistance		1.5Mpa (15.3kgf/c㎡)
Max.Working Pressure		1.0Mpa (10.2kgf/c㎡)
Min.Working Pressure		0.12Mpa (1.2kgf/c㎡)
Ambient & Medium Temp.		-10~+60℃
Piston Speed		50~500mm/s									50~400mm/s
Buffering		Rubber Cushion
Tolerance of Stroke(mm)		+1.5 0mm
Bearing		Slide bearing/Ball guide bdaring
Precision of Piston Rod Non-rotating	Slide Bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.04°
	Ball Guide Bearing	±0.10°		±0.09°		±0.08°		±0.06°		±0.05°
Port Size		M5×0.8		G1/8″				G1/4″		G3/8″

Stroke

Bore(mm)	Standard Stroke
12,16	10,20,30,40,50,75,100,125,150,175,200,250
20,25	20,30,40,50,75,100,125,150,175,200,250,300,350,400
32~100	25,50,75,100,125,150,175,200,250,300,350,400

Overall Dimension

Dimension Sheet
MGPM,MGPL(Φ12~Φ25）

Bore	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA
12	10,20,30,40,50,75,100	42	29	6	8	5	26	11	7.5	58	M4	13	13	18	M4×0.7	10	M4×0.7	4.3
16	10,20,30,40,50,75,100	46	33	8	8	5	30	11	8	64	M4	15	15	22	M5×0.8	12	M5×0.8	4.3
20	20,30,40,50,75,100, 125,150,175,200	53	37	10	10	6	36	10.35	8.5	83	M5	18	18	24	M5×0.8	13	M5×0.8	5.6
25	20,30,40,50,75,100, 125,150,175,200	53.5	37.5	12	10	6	42	11.5	9	93	M5	21	21	30	M6×1.0	15	M6×1.0	5.6

Bore	Standard Stroke(mm)	OB	OL	P	PA	PB	PW	Q	R	S	T	U	VA	VB	X	XA	XB	XC	XL
12	10,20,30,40,50,75,100	8	4.5	M5×0.8	13	8	18	14	48	22	56	41	50	37	23	3	3.5	3	6
16	10,20,30,40,50,75,100	8	4.5	M5×0.8	15	10	19	16	54	25	62	46	56	38	24	3	3.5	3	6
20	20,30,40,50,75,100, 125,150,175,200	9.5	5.5	RC1/8	12.5	10.5	25	18	70	30	81	54	72	44	28	3	3.5	3	6
25	20,30,40,50,75,100, 125,150,175,200	9.5	5.5	RC1/8	12.5	13.5	28.5	26	78	38	91	64	82	50	34	4	4.5	3	6

Bore	Standard Stroke(mm)	WA			WB			YY	YL	Z
		30 st or less	Over 40 st to 100st	125st or less	30 st or less	Over 40 st to 100st	125st or less
		30 st or less	Over 40 st to 100st	125st or less	30 st or less	Over 40 st to 100st	125st or less				12	10,20,30,40,50, 75,100	20	40	-	15	25	-	M5×0.8	10	5
16	24	44	-	17	27	-	M5×0.8	10	5			10,20,30,40,50, 75,100
20	20,30,40,50,75,100, 125,150,175,200	24	44	120	29	39	77	M6×1.0	12	17
25	20,30,40,50,75,100, 125,150,175,200	24	44	120	29	39	77	M6×1.0	12	17

MGPM(Slide bearing)

Bore	A			DB	E
Bore	50st≥	50st< 100st≥	100st<	DB	50st≥	50st< 100st≥	100st<
12	42	60.5	85	8	0	18.5	43
16	46	64.5	95	10	0	18.5	49

MGPL(Ball guide bearing)

Bore	A			DB	E
Bore	30st≥	30st< 100st≥	100st<	DB	30st≥	30st< 100st≥	100st<
12	43	55	85	6	1	13	43
16	49	65	95	8	3	19	49

MGPM(Slide bearing)

Bore	A			DB	E
Bore	50st≥	50st< 200st≥	200st<	DB	50st≥	50st< 200st≥	200st<
20	53	84.5	122	16	0	31.5	69
25	53.5	85	122	20	0	31.5	68.5

MGPL(Ball guide bearing)

Bore	A				DB	E
Bore	30st≥	30st< 100st≥	100st< 200st≥	200st<	DB	50st≥	50st< 100st≥	100st< 200st≥	100st<
20	63	80	104	122	10	10	27	51	69
25	69.5	80.5	104.5	122	13	16	32	51	68.5

Overall Dimension

Dimension Sheet
MGPM,MGPL (Φ32~Φ63)

Bore	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P	PA	PB
32	25,50,70,100, 125,150,175,200	59.5	37.5	16	12	10	48	12.5	9	12.5	112	M6	24	24	34	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	7	15
40		66	44	16	12	10	54	14	10	14	120	M6	27	27	40	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	13	18
50		72	44	20	16	12	64	14	11	12	148	M8	32	32	46	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	9	21.5
63		77	49	20	16	12	78	16.5	13.5	16.5	162	M10	39	39	58	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	14	28

Bore	Standard Stroke(mm)	PW	Q	R	S	T	U	UA	VB	WA			WB			X	XA	XB	XC	XL	YY	YL	Z
Bore	Standard Stroke(mm)	PW	Q	R	S	T	U	UA	VB	25st	50,75,100st	100st or above	25st	50,75,100st	100st or above	X	XA	XB	XC	XL	YY	YL	Z
32	25,50,70,100, 125,150,175,200	34	30	96	44	110	78	98	63	24	48	124	33	45	83	42	4	4.5	3	6	M8×1.25	16	21
40		38	30	104	44	118	86	106	72	24	48	124	34	46	84	50	4	4.5	3	6	M8×1.25	16	22
50		47	40	130	60	146	110	130	92	24	48	124	36	48	86
